Installing the front brake pad wear sensor
Installing the front brake pad wear sensor
Attach the cable of the brake pad wear sensor in the holder (1).
Install the brake pad wear sensor (2) in the arrow direction in the brake pad and ensure its correct fit.
Courtesy of BMW OF NORTH AMERICA, INC.

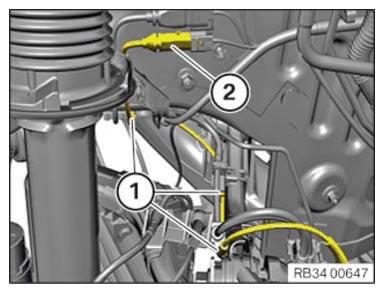

Attach cable of brake pad wear sensor in holders (1).
Connect connectors and lock.
Close sealing cap (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
