Remove glove box lid
Preliminary work
- Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
- Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Refer to REMOVING THE GLOVE COMPARTMENT DAMPER .

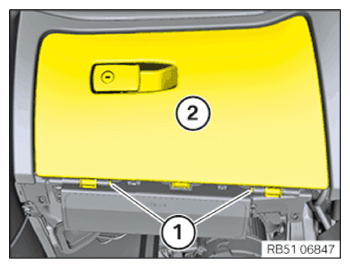

- Pull out and remove the hinge bolt (1) from the hinge.
- Thread out and remove glove box lid (2) .
