Removing the glove compartment damper
Preliminary work
- Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
- Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .

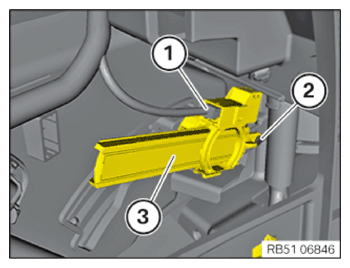

- Disconnect the connector (1).
- Remove the retaining pins (2) outward.
- Twist the glove compartment damper (3) approx. 45° counterclockwise and remove.
