Removing the tail light on the left and right side panel
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING TRUNK COMPARTMENT LIGHT .
- Refer to REMOVING THE UPPER LUGGAGE COMPARTMENT TRIM PANELS .
- Refer to PARTIALLY REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT .
- Refer to REMOVING THE COVER FOR THE WATER CHANNEL LEFT AND RIGHT .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the tail light on the side panel
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

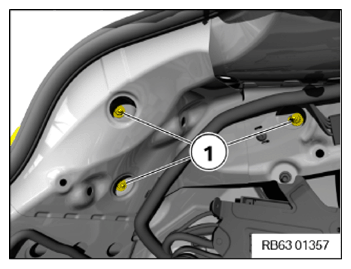

- Loosen nuts (1)
.

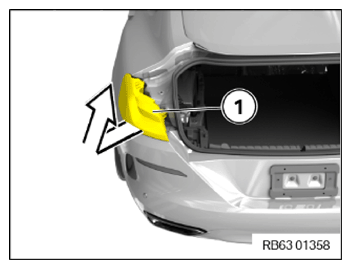

- Release tail light (1)
on the side panel in the arrow direction.NOTE: TECHNICAL INFORMATION
Observe the note on unlocking and disconnecting plug connections.

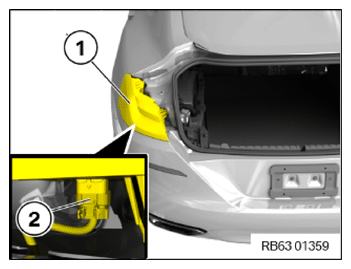

For additional information see: UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS . - Unlock and disconnect plug connection (2) .
- Remove tail light (1) on the side panel.
