Remove trunk compartment light
Remove trunk compartment light

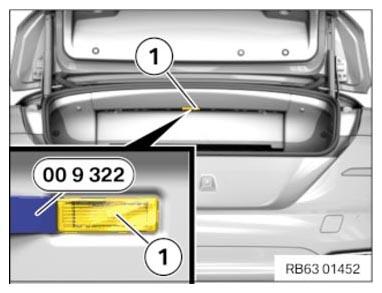

Unclip luggage compartment lamp (1) with special tool
0 490 539 (00 9 322)
.
Courtesy of BMW OF NORTH AMERICA, INC.

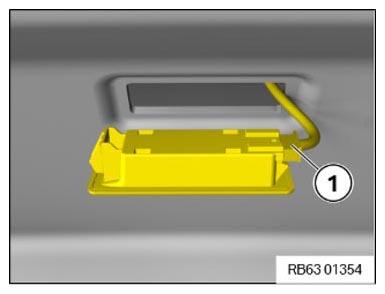

Unlock plug connection (1) and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
