Remove front cross connection
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE FRONT HOOD SEAL .
- Refer to REMOVING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to RELEASING THE RIGHT FRONT-END STRUT .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Refer to REMOVING UPPER CROSS CONNECTION .

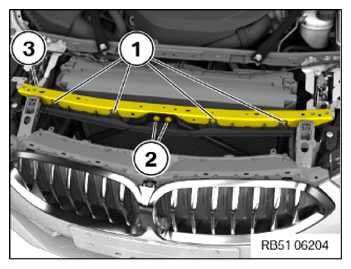

- Loosen the expanding rivet (1).
- Loosen screws (2).
- Feed out the front cross connection (3) toward the top.
