Installing the headlining (lowered)

• Check the clips (1)  on the headlining (2)  for damage and replace, if necessary.
• Correctly position the headlining (1)  with the help of a support person and feed in on the respective edge protection.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the headlining (2)  using the clips (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the headlining (1)  using the clips (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Check

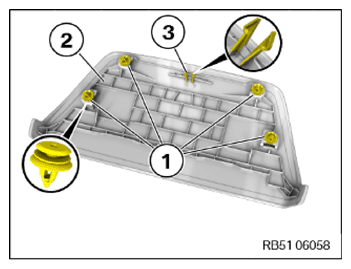

• Check clips (1)  on the trim (2)  for damage and replace, if necessary.
• Check the detent (3)  on the trim (2)  for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detent is damaged.

Measure

• Replace cover of the auxiliary brake light (2)  .

• Fit the cover of the auxiliary brake light (1)  from the bottom.
• Clip in the cover of the auxiliary brake light (1)  with the clips (3)  and the detent (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the expanding rivet (1)  on the headlining (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING INTERIOR REARVIEW MIRROR .
• Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
• Refer to INSTALLING BOTH SUN VISORS AND COUNTER SUPPORTS .
• Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to PARTIALLY INSTALLING BOTH TRIM PANELS FOR BODY PILLAR .
• Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
• Refer to INSTALLING BOTH REAR SIDE TRIM PANELS .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
