Partially install both trim panels for body pillar

NOTE: Procedure shows left component only. Procedure on the right side is identical.

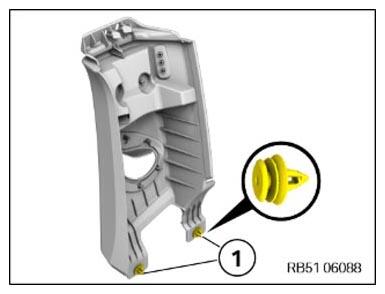

• Check the clips (1) for damage and replace where required.

  Courtesy of BMW OF NORTH AMERICA, INC.

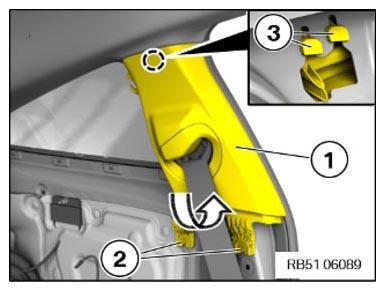

• Insert the trim panel (1) for the body pillar in arrow direction in the guides (3) and below the lip of edge protection.
• Clip the trim panel (1) in for the body pillar with the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
