Install the positive battery cable from the starter motor to the auxiliary terminal for jump starting

Positive battery cable from the starter motor to the remote positive terminal

Courtesy of BMW OF NORTH AMERICA, INC.

Precondition

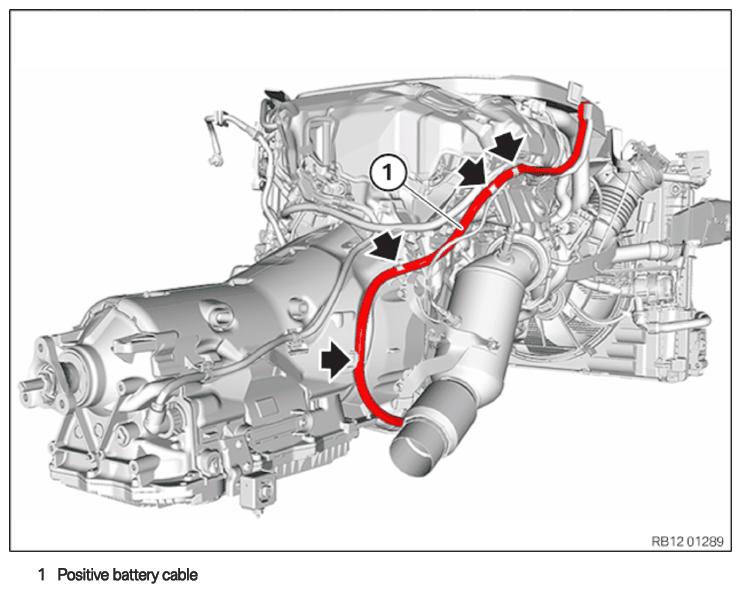

• Insert and install the positive battery cable (1)  .
• Secure the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install the heat shield (2)  .
• Tighten nuts (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Heat shield to body
  Nut	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the positive battery cable (1)  to the starter motor.
• Move the positive battery cable (1)  on the anti-twist lock (2)  to the stop.
• Tighten nut (3)  .
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to starter
  M8	Tightening torque	13.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the positive battery cable (1)  to the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (1)  .
• Tighten nut (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to battery positive terminal
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

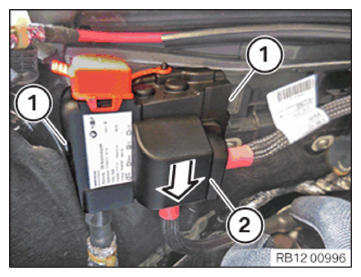

• Insert and install the cover (2)  in the direction of the arrow.

  The locks (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
