Installing luggage compartment wheel arch trim panel

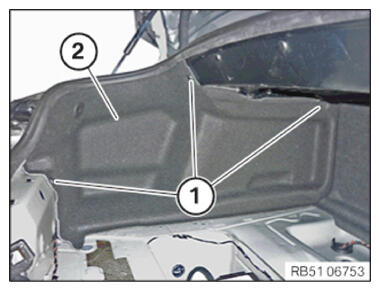

• Install luggage compartment wheel arch trim panel (2)  and position correctly.
• Mount the expanding rivets (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the multifunction hook with the expanding rivet (4)  .
• Tighten screws (3)  of lashing eyes (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Lashing point to body
  M8 screw	Tightening torque	19 Nm

• Clip in covers of lashing eyes (2)  .

Follow-up work

• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
