Removing the outer cover on the electrical front seat

Precondition

• Convertible top is completely open.

Preliminary work

• Refer to REMOVING THE FRONT STRAP FITTING .
• Refer to REMOVING FRONT SEAT .

Courtesy of BMW OF NORTH AMERICA, INC.

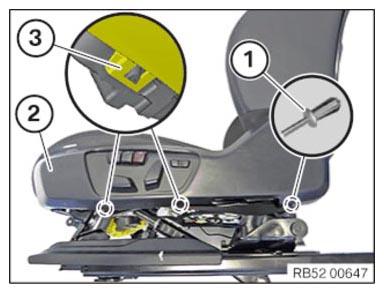

• Loosen expanding rivet (1).
• Remove the cover (2) outwards from detents (3).

Courtesy of BMW OF NORTH AMERICA, INC.

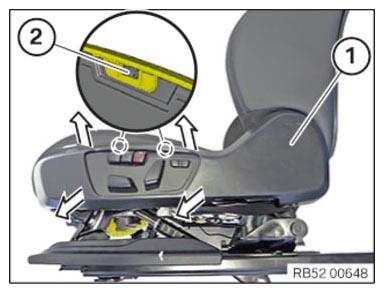

• Pull cover (1) at bottom outwards slightly and release upwards from detents (2).
