Removing inner cover from the front seat

Precondition

Convertible top is completely open.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING THE FRONT STRAP FITTING .
Refer to REMOVING FRONT SEAT .

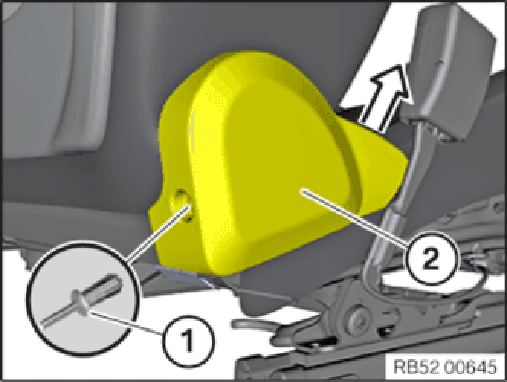

G15171970

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen expanding rivet (1).
Remove the cover (2) in the direction of the arrow.
