Remove undershield from the left or right side
NOTE:
Description is for left component only. Procedure on the right side is identical.

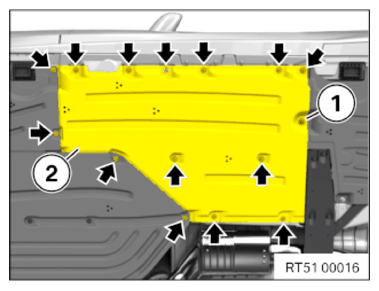

Remove side underbody planking
- Release all screws and nuts (arrows).
- Remove the underbody planking (1)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
