Installing the right ventilation grille

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

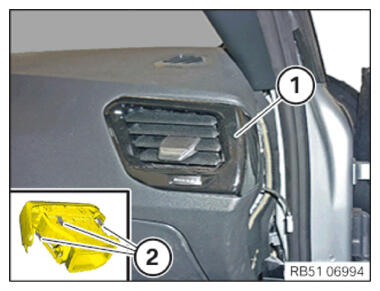

Check if there are detents (2) or check them for damage and, if necessary, replace the right ventilation grille (1) .
Position the right ventilation grille (1) correctly and engage it in the detents (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TRIM ON THE DASHBOARD ON THE RIGHT .
