Installing the left ventilation grille
NOTE:
Detents, guides and mounting elements must not be damaged or missing.

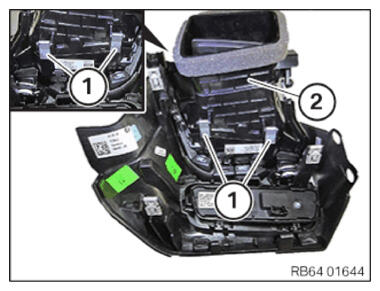

- Replace the clamps (1)
on the ventilation grille (2)
.
Parts : Clamps

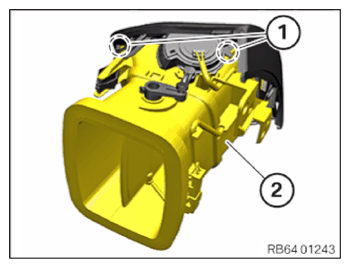

- Place the ventilation grille (2) on the decorative strip (3) and position it correctly.
- Engage the detents (1)
onto the ventilation grille (2)
.

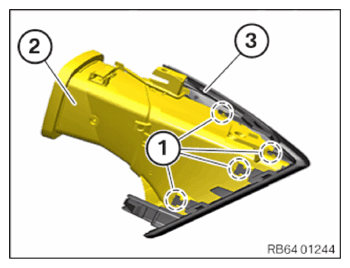

- Turn the ventilation grille (2) with the decorative strip (3) .
- Engage the detents (1)
onto the ventilation grille (2)
.

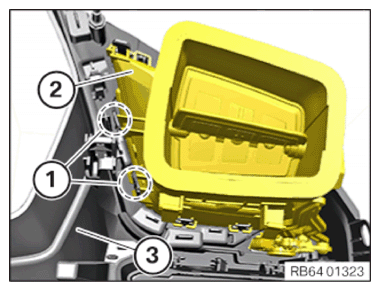

- Engage the detents (1)
onto the fresh air grille (2)
.
