51 45 Dashboard Trim, Instrument Panel Trim
>>
51 45 031 Replacing instrument panel trim
>>
Installing the air ducts in the dashboard
Installing the air ducts in the dashboard

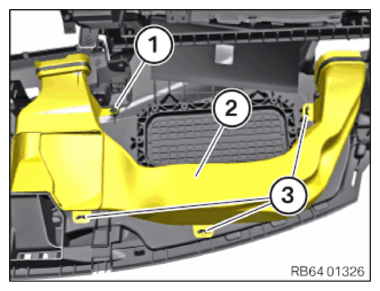

Install the right air duct
(2)
and engage at the detents
(3)
.
Tighten down screw
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
TIGHTENING TORQUE SPECIFICATION
Air duct to bracket
Screw
tightening torque
1.8 Nm

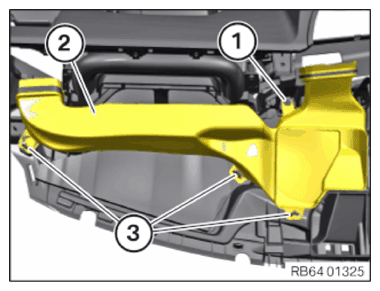

Install the left the air duct
(2)
and engage at the detents
(3)
.
Tighten down screw
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
TIGHTENING TORQUE SPECIFICATION
Air duct to bracket
Screw
tightening torque
1.8 Nm
