Installing the model inscription at the rear
CAUTION:
Laser beam.
Injury hazard!
Injury hazard!
- Do not look into the laser beam.
- Park the vehicle and the special tool 2 407 566 on a flat and even surface.
- Mount the laser on the tripod.
- Switch on laser (Position without automatic level).
- Activate laser horizontally and vertically.

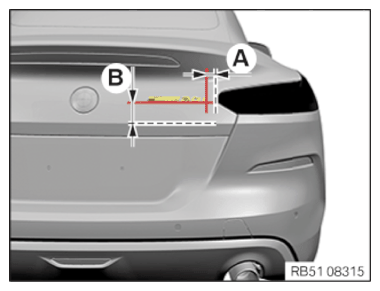

- Place special tool behind the vehicle and center.
- Align vertical laser beam (A) according to specified dimension.
- Align the horizontal laser beam (B)
according to the predefined dimension.TECHNICAL DATA SPECIFICATION
Model inscription on the left side of the trunk lid Dimension A from corner of the trunk lid 45 mm TECHNICAL DATA SPECIFICATIONModel inscription on the left side of the trunk lid Dimension B from edge of the trunk lid 65 mm - Clean the adhesive area with cleaning agent.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Adhere to the air drying time of 2 min.
- Detach the liner from the adhesive strip of the model inscription on the left.
- Align the model inscription on the left with the laser beams as shown, position it on the tailgate and press on it.

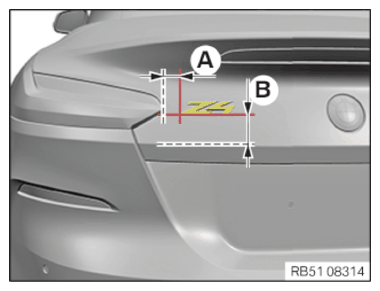

- Position special tool behind vehicle.
- Align the laser beam to the right according to specified dimension.TECHNICAL DATA SPECIFICATION
Model inscription on the right side of the trunk lid Dimension A from corner of the trunk lid 45 mm TECHNICAL DATA SPECIFICATIONModel inscription on the right side of the trunk lid Dimension B from edge of the trunk lid 65 mm - Clean the adhesive area with cleaning agent R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Adhere to the air drying time of 2 min.
- Detach the liner from the adhesive strip of the model inscription on the right.
- Align the model inscription on the right with the laser beams as shown, position it on the tailgate and press on it.
