Installing the rear emblem

If applicable, remove adhesive residue from the tailgate.

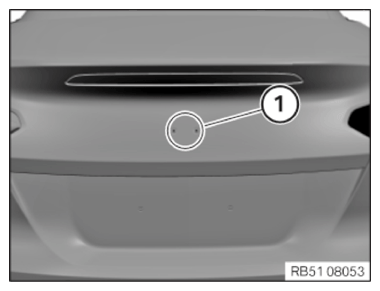

Clean the adhesive area (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Check the nozzles (2) for damage; replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Coat the guide pins (2) of the emblem (1) with lubricant.

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION AID SPECIFICATION

Lubricants G14 900 ml, Can 83232360412
Detach the liner from the bonding surfaces of the emblem (1) .
Insert emblem (1) in the nozzles with guide pins (2) and press on it all around.
