Installing the top windshield panel trim (upper section)

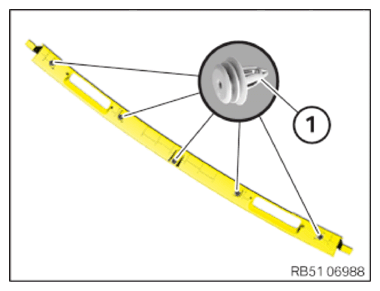

Check the clips (1) for damage and availability.
Damaged or missing clips (1) must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.
Install the top windshield panel trim (1) and position it correctly.
Clip in the top windshield panel trim (1) at the clips (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Lift the seal (1) slightly and tighten the screw (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Windshield panel trim to A-pillar
Screw	tightening torque	2.5 Nm
