Remove Head unit High (HU-H)
Preliminary work
- Refer to DEACTIVATING VEHICLE ELECTRICAL SYSTEM .
- Refer to REMOVING DECORATIVE STRIP ON DASHBOARD AT CENTER .
- Refer to REMOVING THE AUDIO CONTROL UNIT .
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE:
RISK OF DAMAGE
Damage to the head unit.
The hard disk of the head unit can be damaged by vibrations.
Damage to the head unit.
The hard disk of the head unit can be damaged by vibrations.
- Carry out mechanical work on the head unit and adjacent components with care.

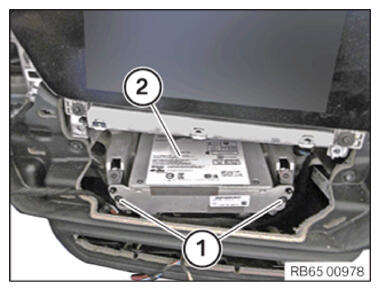

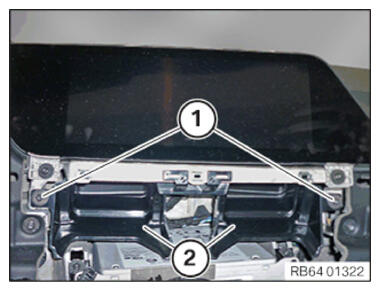

Removing the air duct from the center dashboard
