Remove decorative strip on dashboard at center
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

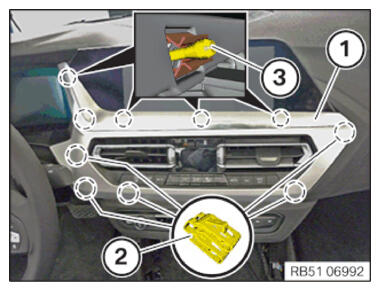

- Remove the decorative strip (1) with the special tool 0 496 569 (00 9 325) at the clamps (2) and retainer pins (3) .
- Unlock and disconnect any plug connections, and remove the decorative strip (1)
.
