35 31 000 Removing and installing or replacing clutch pedal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, perform a functional check.

Necessary preliminary work:

Remove left footwell trim . See 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (US ONLY) .

Press plastic pin (1) together and press out.

Press out plastic pin (2).

If necessary, disconnect over-center helper spring.

Clutch hydraulic system remains connected!

Remove clutch pedal.

Installation note:

Replace plastic pins (1 and 2).

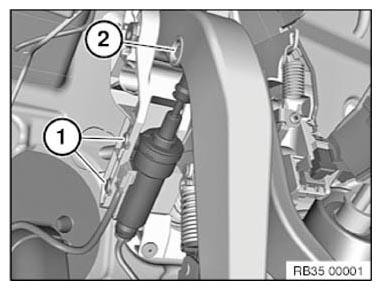

Fig 1: Identifying Plastic Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check bearing bushings (1) and replace if necessary.

Lightly grease bearing bushings (1).

Fig 2: Identifying Bearing Bushes

Courtesy of BMW OF NORTH AMERICA, INC.
