54 10 295 Removing and installing/replacing drive cable for sliding sunshade

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

REMOVE FRONT FLOATING HEADLINER :
Remove DRIVE UNIT WITH GEARING

Remove end stop for cable on left and right.

Lever out pin (1) and remove expanding rivet.

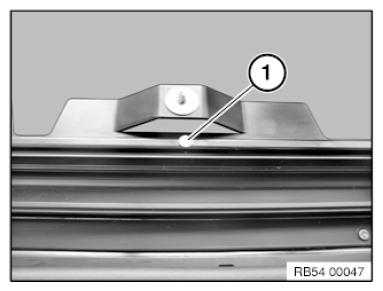

Fig 1: Identifying Expanding Rivet Pin

G09949186

Courtesy of BMW OF NORTH AMERICA, INC.

Push back cable until driver (1) is exposed.

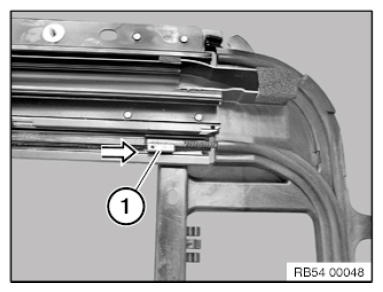

Fig 2: Pushing Back Cable Until Driver Exposed

G09949187

Courtesy of BMW OF NORTH AMERICA, INC.

Pull cable at driver (1) out of guide channel.

NOTE: Both cables must be replaced together.

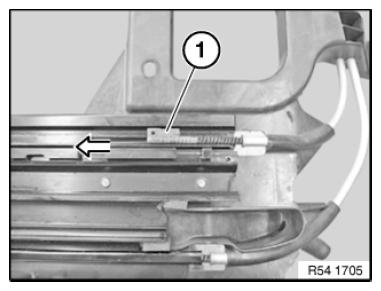

Fig 3: Pulling Cable At Driver Out Of Guide Channel

G09949188

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting drive cable:

Fit cable in guide channel such that driver (1) faces inward.

Slide left and right driver flush on guide rail.

Install DRIVE WITH GEARING .

Move cable over drive with cranked hexagon socket and check setting again.

If necessary, repeat adjusting procedure.

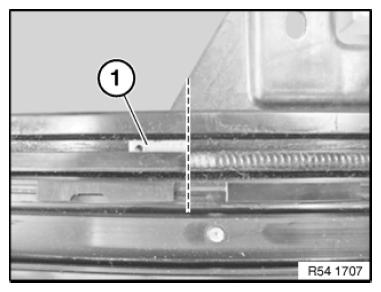

Fig 4: Identifying Guide Channel
