67 61 517 Replacing electric motor with gearbox (rear) to operate the slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

LOWER ROOFLINER (do not feed out)

Release screws at marked points.

Tightening torque 54 13 01AZ .

NOTE: Screws are microencapsulated and must be replaced.

Remove electric motor with transmission (1).

Unfasten plug connection (2) and disconnect.

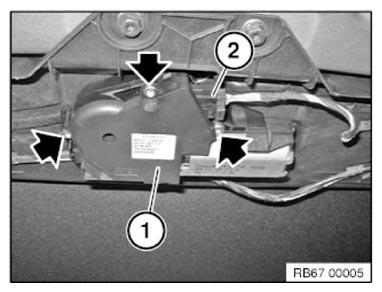

Fig 1: Locating Electric Motor Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert gear wheel (1) of electric motor with gearbox (2) exactly in gearing (3).

Fig 2: Identifying Gear Wheel Of Electric Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Initialize SLIDE/TILT SUNROOF .
