22 32 050 Replacing cross member for transmission mounting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 030
23 4 050

Necessary preliminary tasks:

Remove REAR UNDERBODY PROTECTION .
Remove LEFT UNDERBODY PANELLING .

Supporting transmission:

Support transmission with special tools 23 4 050, 00 2 030 .

Secure transmission to mounting with tensioning strap (1).

Tasks are described in GEARBOX HOLDER .

Fig 1: Supporting Transmission Using Special Tools (23 4 050)

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten ground strap (1).

Release screws.

Remove cross member.

Tightening torque 22 32 3/6AZ .

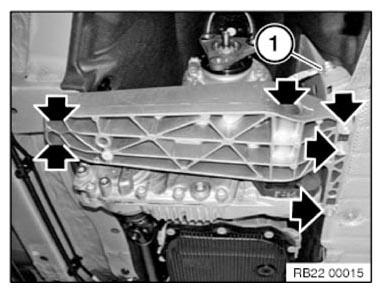

Fig 2: Locating Transmission Mounting Ground Strap

Courtesy of BMW OF NORTH AMERICA, INC.
