22 31 001 Replacing rubber mount for transmission mounting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove CROSS MEMBER for transmission mounting.

Attach special tool 22 1 051 with screw (1) on the housing.

Pull out rubber mount with special tools 22 1 052 /33 4 465 and 33 4 466 .

Fig 1: Attaching Special Tool (22 1 051)

G06913724

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe installation position of rubber mount.

Arrow on rubber mount must point to arrow on housing.

Coat housing bore and rubber mount with Circolight.

Fig 2: Identifying Rubber Mount Installation Position

G06913725

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 22 1 046 with bolt into recesses of rubber mount.

Fig 3: Inserting Special Tool (22 1 046)

G09946448

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in rubber mount with special tools 22 1 046 /22 1 053 /33 4 465 and 33 4 466 .

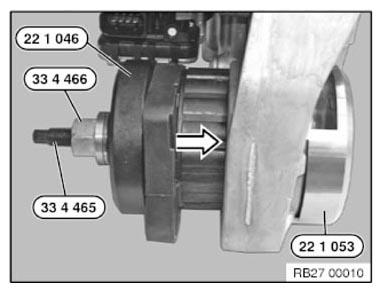

Fig 4: Installing Rubber Mount Using Special Tools (22 1 046)

G09946449

Courtesy of BMW OF NORTH AMERICA, INC.
