31 12 138 Replacing rubber mount in left or right trailing link

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: The rubber mounts are only permitted to be replaced once.

Carry out check:

There must always be a minimum amount of play in the guide joint.

Check guide joint play
NOTE: Apply light pressure to the trailing link (in the area of the guide joint) in the horizontal and vertical directions.
- Play is OK: Check the screw connection. (see Point 2)
- Play is not OK: Replace RUBBER MOUNT AND GUIDE JOINT .

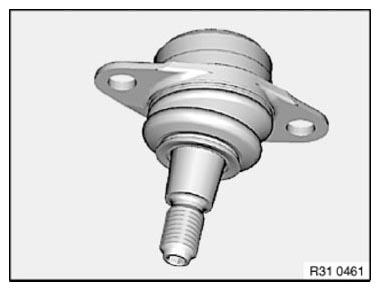

  Fig 1: Identifying Guide Joint
  Courtesy of BMW OF NORTH AMERICA, INC.
Check screw connection (trailing link to guide joint) by tightening to 60 % of tightening torque 31 12 2AZ and listening for cracking sound.
- Torque wrench cracking sound: Replace rubber mount
- Screw connection turns: Replace trailing link and guide joint . See 31 12 026 REMOVING AND INSTALLING/REPLACING GUIDE JOINT IN SWIVEL BEARING or 31 12 080 REMOVING AND INSTALLING/REPLACING BOTH TRAILING LINKS .

Replacing rubber mount:

Remove TRAILING LINK .

Using a press and special tools 31 2 261 and 31 2 264 , press rubber mount out of tension strut.

NOTE: Special tool 31 2 264 must be exactly flush with rubber mount bush.

Fig 2: Pressing Rubber Mount Of Tension Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bushing in tension strut clean and free from grease.

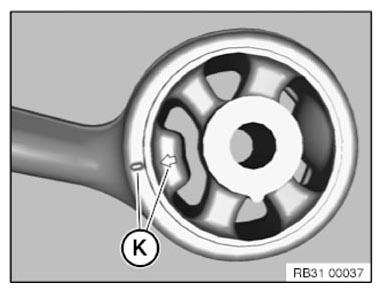

Align rubber mount and trailing link with markings (K) and press into place.

Fig 3: Aligning Rubber Mount And Trailing Link Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protrusion (A) equally large.

Fig 4: Identifying Protrusion

Courtesy of BMW OF NORTH AMERICA, INC.
