31 35 000 Removing and installing/replacing front stabilizer

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: To avoid complaints being made by the customer about noise, set the vehicle on its wheels and tighten down the stabilizer mounting to specified torque.

Necessary preliminary tasks:

Remove fan cowl . See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (N20, N55, N52T) ,
Remove N20, N47T, N55, N57: CHARGE AIR COOLER ,
N52T, N55: Drain COOLANT ,
N52T: Unlock and detach coolant hoses on bottom of radiator,
Remove ANTI-ROLL BAR LINKS FROM ANTI-ROLL BAR .

N52T, N55:

Loosen screws on the coolant pipe (1).

Fig 1: Locating Screws On Coolant Pipe

G09946911

Courtesy of BMW OF NORTH AMERICA, INC.

N52T, N55:

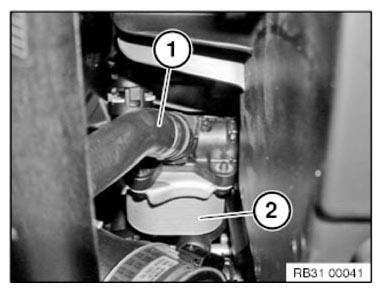

Unlock and detach coolant hose (1) from gearbox oil cooler (2).

Fig 2: Identifying Coolant Hose And Gearbox Oil Cooler

G09946973

Courtesy of BMW OF NORTH AMERICA, INC.

N52T, N55:

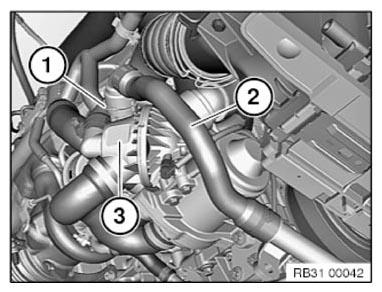

Unlock retaining clip (1). Pull the coolant hose (2) off the coolant thermostat (3).

Fig 3: Identifying Retaining Clip, Coolant Hose And Thermostat

G09946974

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 31 35 1AZ

Remove both retaining brackets of anti-roll bar (2).

Remove the anti-roll bar toward the bottom front.

Installation note:

Check rubber mount on both sides, replace anti-roll bar if necessary.

Fig 4: Identifying Retaining Brackets Of Anti-Roll Bar And Screws

G04794369

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

N52T, N55:

FILL AND BLEED COOLING SYSTEM .
