Installing lower part of rear spoiler

• Install the lower part of the rear spoiler (1) and clip in the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

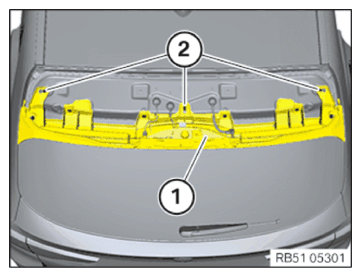

• Tighten the bolts (1) and nuts (2).

Courtesy of BMW OF NORTH AMERICA, INC.

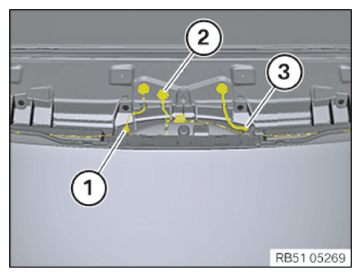

• Connect connectors (1) and lock.
• Install the AM antenna (2) in the holders.
• Connect and lock the washer fluid hose (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install rear SPOILER .
• Mount rear window frame side both TRIMS .
• Install the top rear window frame TRIM .
