Install rear spoiler

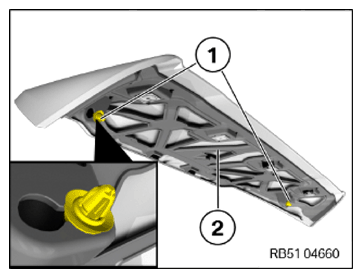

• Check clips (1) on rear spoiler (2) for damage and, if necessary, replace them.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

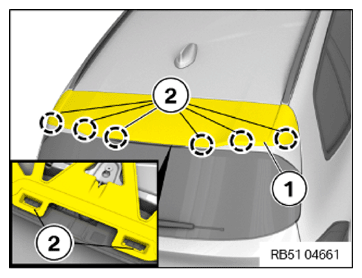

• Position the rear spoiler (1) on the guides (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

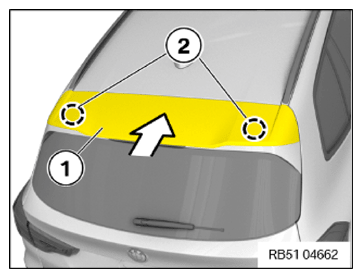

• Push on the rear spoiler (1) in the arrow direction and engage.
• Clip the rear spoiler (1) into the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Mount rear window frame side both TRIMS .
• Install the top rear window frame TRIM .
