Install the module bracket on the rear door

Check

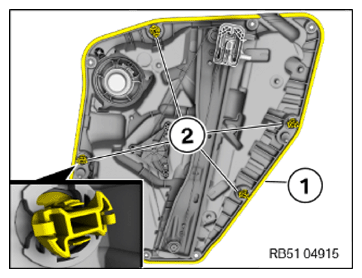

• Check gasket (1) on the module bracket for damage.
• Check the locks (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The seal (1) on the module bracket is damaged.

Measure

• Replace the module bracket.

Result

» The locks (2) are damaged.

Measure

• Replace the locks (2).

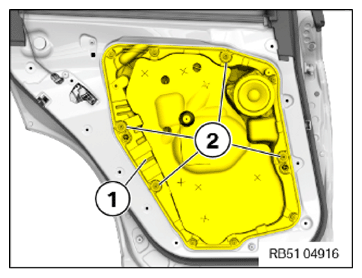

• Fit the module bracket (1) and close the locks (2).

Courtesy of BMW OF NORTH AMERICA, INC.

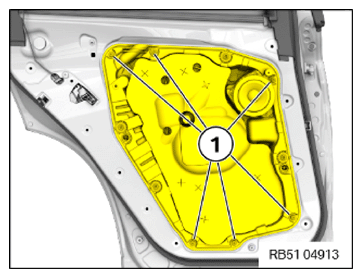

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Module bracket at the rear door
  M6x14 screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

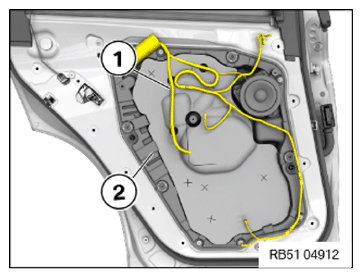

• Clip the detents of the door wiring harness (1) into the module bracket (2).
• Connect the connector of the door wiring harness (1) with the module bracket (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the adhesive tape and manually lower the door window glass (1) until it engages in the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install rear door TRIM .
• Install the rear door outer window CHANNEL STRIP .
