Install rear door trim

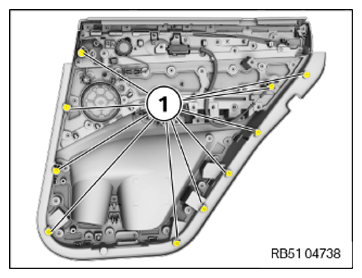

• Check the clips (1) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip the detents of the door wiring harness (1) into the door trim panel (2).
• Connect door wiring harness connector (1) to door trim panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

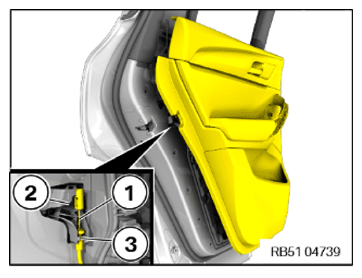

• Attach Bowden cable (1) of door opener onto door lock (3) first and then to the counter support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert locking rod through opening in door trim panel (1).

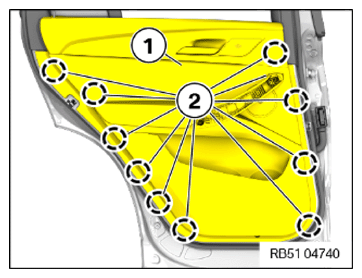

• Clip in door trim panel (1) with the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1) and (2).
  TIGHTENING TORQUES SPECIFICATION



  Door trim panel
  Oval-head screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

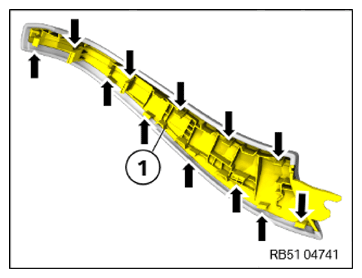

• Check detents (arrows) of the trim of the handle (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detents (arrows) of the trim (1) of the handle are damaged.

Measure

• Replace trim (1) of the handle.

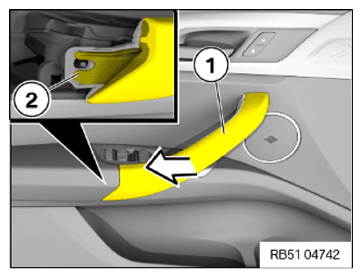

• Position and lock trim (1) of the handle in arrow direction with guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.
