Removing rear door window glass (fixed)

Preliminary work

• Remove the rear door outer window CHANNEL STRIP .
• Remove rear door TRIM PANEL .
• Remove the window frame rear inside COVER .
• Remove the window inner rear door CHANNEL STRIP .

• Pull the rubber window seal (1) out of the window guide rail (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Remove the window guide rail (2) from the door.

  Courtesy of BMW OF NORTH AMERICA, INC.

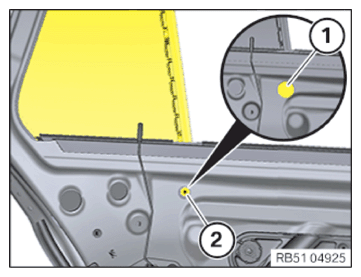

• Remove the seal plug (1).
• Loosen screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Unclip the door window glass (2) out of the door at the top.
• Guide the door window glass (2) out of the door to the top.

Courtesy of BMW OF NORTH AMERICA, INC.
