Removing rear door window glass
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Remove the rear door outer window CHANNEL STRIP .
- Remove rear door TRIM PANEL .
- Remove the window frame rear inside COVER .
- Remove rear door window frame TRIM ..
Prerequisite
The door window glass is fully shut.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Secure the door window glass to the door frame when it is closed using adhesive tape.

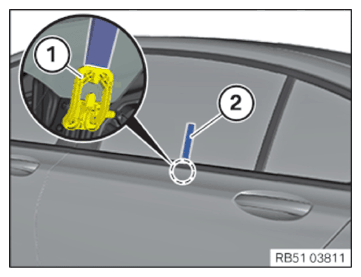

- Spread the holder (1) on the door window glass with the special tool 0 496 569 (00 9 325) (2) and unlock.
- Move the power window all the way down.
- Remove the adhesive tape and take out the door window glass to the top.
