Remove Left Engine Compartment Lid Hinge

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE JET CHAIN PARTIALLY .
Refer to REMOVE HOOD .
Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE ACTUATOR ON THE LEFT HOOD HINGE .

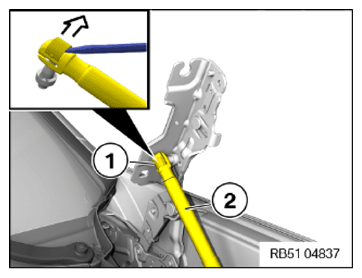

Open locking mechanism (1) at top and detach gas spring (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the cable clip (1).
Release screws (2) and take off hood hinge (3).

Courtesy of BMW OF NORTH AMERICA, INC.
