61 31 197 Removing and installing/renewing center console operating facility

Necessary preliminary tasks:

IMPORTANT: Risk of damage.
Center console operating facility must not be pried out from the outside.

Release latch mechanisms (1) and press operating facility (2) out of trim (3).

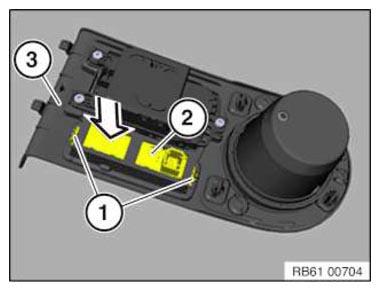

Fig 1: Pressing Operating Facility Out Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release catches (1) on both sides.

Remove operating unit (2) in direction of arrow from cover (3).

Remount trim (3).

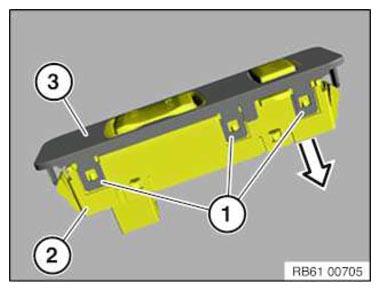

Fig 2: Removing Operating Unit From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) must not be damaged or missing.

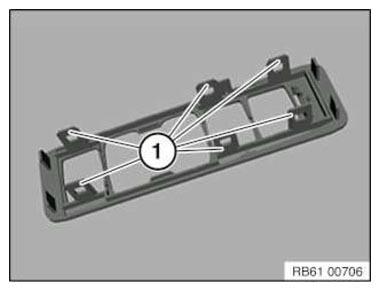

Fig 3: Identifying Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
