51 16 145 Removing and installing (replacing) decorative trim at center console

Special tools required:

• 00 9 327

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

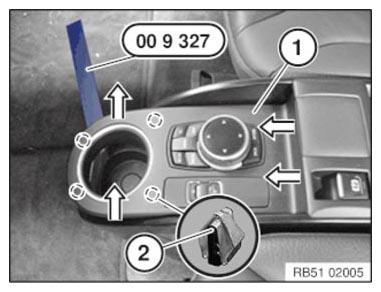

Release trim (1) from clamps (2) using special tool 00 9 327 .

Lift trim (1) on front and pull out towards front.

Unlock associated plug connections and disconnect.

Remove cover (1).

Installation note:

Replace faulty clamps (2).

When replacing, remount the following parts depending on the version:

• CENTER CONSOLE OPERATING UNIT
• CONTROLLER
