51 13 316 Removing and installing or replacing trim strip on roof gutter at left or right

Necessary preliminary tasks:

• Remove TRIM ON FRONT SIDE PANEL AT FRONT

Open door at front and rear.

Release screws (1).

Tightening torque 51 13 1AZ .

Pull trim strip (3) out of clamps (2) in direction of arrow beginning at the front.

Installation note:

To avoid noises and leaking, check clamps (2) for damage.

Replace faulty clamps (2).

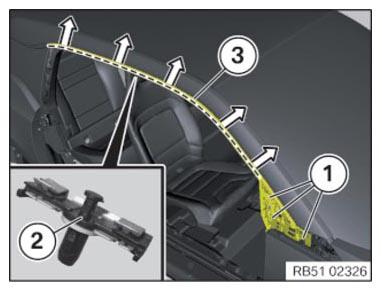

Fig 1: Pulling Trim Strip Out Of Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
