51 13 095 Removing and installing/replacing cover on front side wall left or right

Special tools required:

• 2 298 505

Place special tool 2 298 505 on latch mechanisms (1) as illustrated.

Pull cover (2) slightly outwards and remove latch mechanisms (1).

Release cover (2) from latch mechanisms (3) and remove.

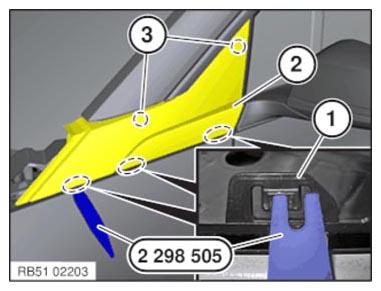

Fig 1: Placing Special Tool (2 298 505) On Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms must not be damaged or missing.

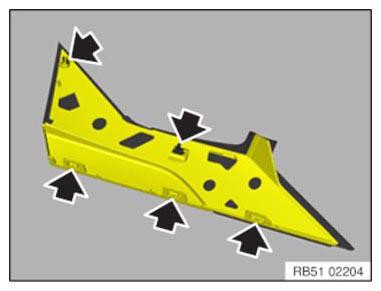

Fig 2: Checking Latch Mechanisms For Damaged Or Missing

Courtesy of BMW OF NORTH AMERICA, INC.
