51 49 003 Removing and installing/replacing cover for rear window frame on left or right

Special tools required:

• 00 9 325

Necessary preliminary tasks:

• Release holding straps of storage shelf
• Remove COVER FOR REAR WINDOW FRAME AT TOP

Release screw (1) and remove retaining knob.

Release trim (2) from clips (3) using special tool 00 9 325 and remove.

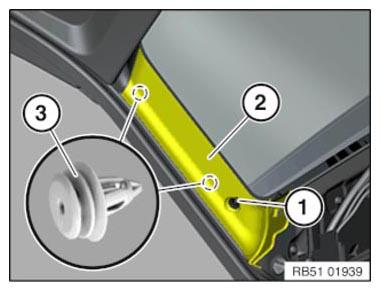

Fig 1: Identifying Trim, Clips And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The following parts of the trim must not be missing or damaged:

1. Latch mechanism
2. Clip
3. Guide

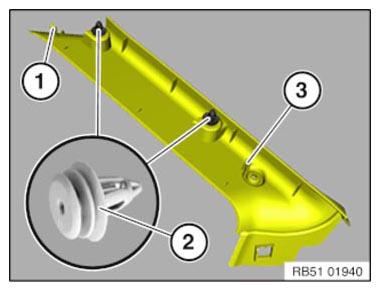

Fig 2: Identifying Latch Mechanism, Clip And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
