51 22 225 Removing and installing/replacing inside door opener of rear left or right door

Necessary preliminary tasks:

Release screws (1).

Tightening torque 51 22 5AZ

Fig 1: Identifying Inside Door Opener Screws

Courtesy of BMW OF NORTH AMERICA, INC.

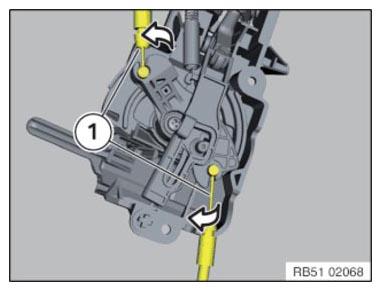

Detach cables (1).

Fig 2: Detaching Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

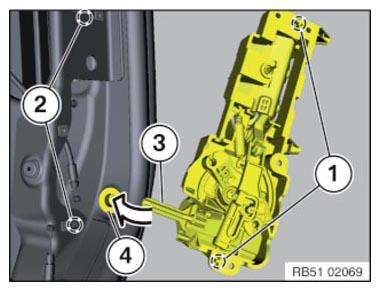

Insert guides (1) into bore holes (2).

Insert pin (3) into grommet (4).

Fig 3: Inserting Pin Into Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

After installation, carry out function check with door open.
