51 46 050 Removing and installing/replacing top cover on tail panel

Necessary preliminary tasks:

• Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

Release covers (1).

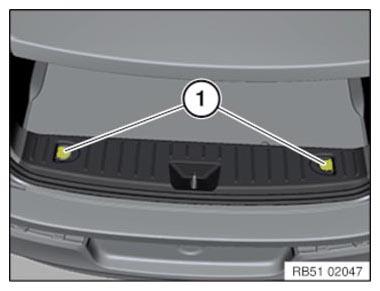

Fig 1: Identifying Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1) and remove lashing eyes.

Tightening torque 51 47 1AZ .

Remove trim (2) upwards.

Installation note:

Make sure edge protection for tailgate (2) is correctly seated on cover.

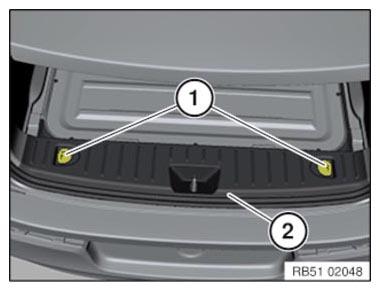

Fig 2: Identifying Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
