51 47 101 Removing and installing/replacing luggage compartment floor trim panel

Remove luggage compartment floor trim panel in direction of arrow.

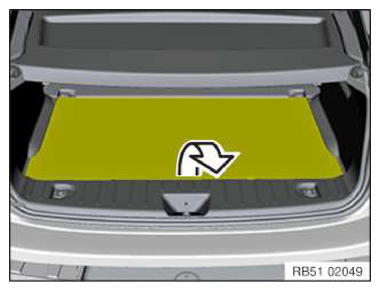

Fig 1: Removing Luggage Compartment Floor Trim Panel
G11145051Courtesy of BMW OF NORTH AMERICA, INC.
