61 31 172 Removing and installing/replacing switch for electromechanical parking brake

The following points must be strictly observed prior to starting work:

Disconnect HIGH-VOLTAGE SYSTEM FROM POWER .

Observe SAFETY INFORMATION for handling electric vehicles.

Necessary preliminary tasks:

• Disconnect NEGATIVE BATTERY CABLE (to avoid fault memory entries)
• Remove COVER FOR STORAGE COMPARTMENT

Release screws (1).

Tightening torque 61 31 2AZ .

Remove switch for electromechanical parking brake (2) from cover for gear selector switch (3).

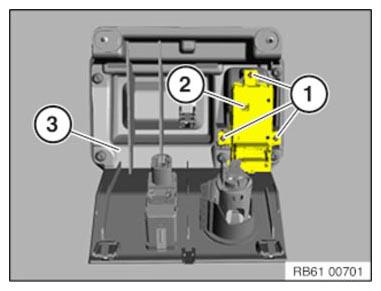

Fig 1: Identifying Gear Selector Switch, Electromechanical Parking Brake And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
