51 16 380 Removing and installing/replacing locking cup for glove box

Necessary preliminary tasks:

• Remove GLOVE BOX

Release screw (1) from outside.

Release screws (2) from inside.

Remove locking cup (3) towards rear.

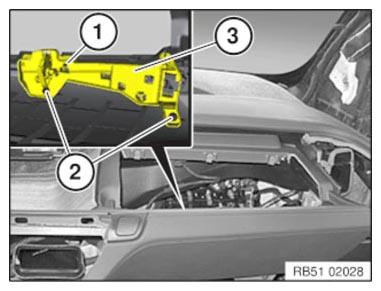

Fig 1: Identifying Locking Cup And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
