84 31 020 Removing and installing/replacing hands-free system speaker

Necessary preliminary tasks:

If necessary unfasten plug connection.

Unlock latch mechanisms (1) and remove speaker (2) from bracket (3).

Installation note:

Latch mechanisms (1) must not be damaged.

Guide lugs of bracket must be seated in grooves of speaker (2).

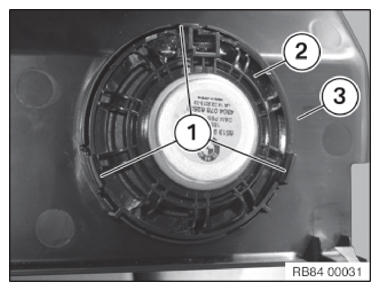

Fig 1: Identifying Speaker, Bracket And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Speaker (2) must engage audibly in bracket (3).
