51 11 060 Removing and installing/replacing support for front lower bumper panel

Necessary preliminary tasks:

• Remove front BUMPER PANEL

Release screws (1) and remove support (2).

Tightening torque 51 11 5AZ .

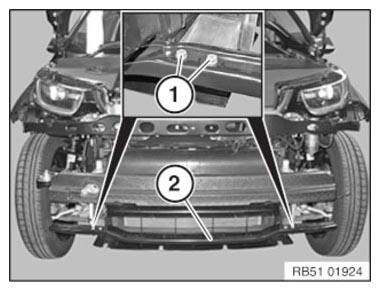

Fig 1: Identifying Front Bumper Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
