51 11 156 Removing and installing front bumper panel

Necessary preliminary tasks:

Release screws.

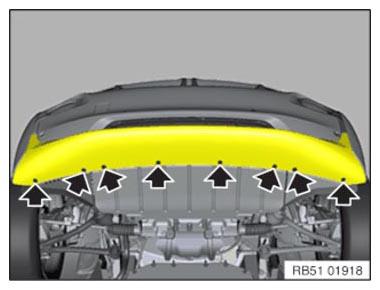

Fig 1: Locating Front Bumper Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 11 1AZ .

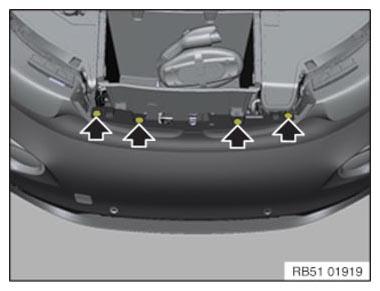

Fig 2: Locating Front Bumper Screws

Courtesy of BMW OF NORTH AMERICA, INC.

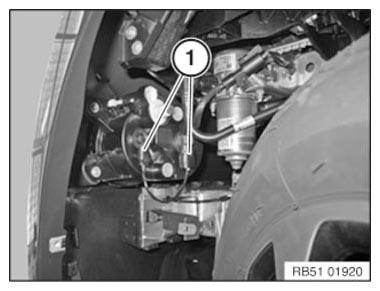

Unlock plug connections (1) and disconnect.

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Fig 3: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left/right.

Tightening torque 51 11 2AZ .

NOTE: The following tasks must be carried out with a second person assisting:

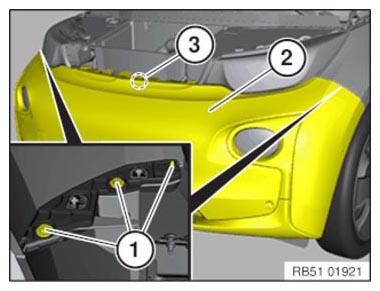

Fig 4: Identifying Bumper Panel, Guide And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift bumper panel (2) over guide (3).

Remove bumper panel (2) towards front.

If necessary, unlock associated plug connections and disconnect.
