51 11 050 Removing and installing/replacing support for front bumper panel

Necessary preliminary tasks:

• Remove front BUMPER PANEL
• Remove the FANFARE HORN

Remove impact absorber (1).

Fig 1: Identifying Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 11 3AZ .

Remove support (2).

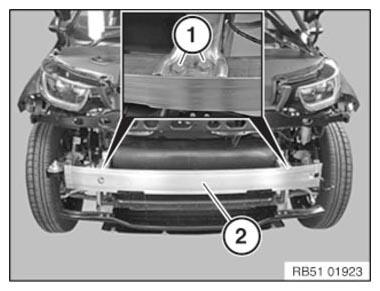

Fig 2: Identifying Front Bumper Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
