51 21 125 Removing and installing/replacing support for left or right outer door handle with lock barrel

Necessary preliminary tasks:

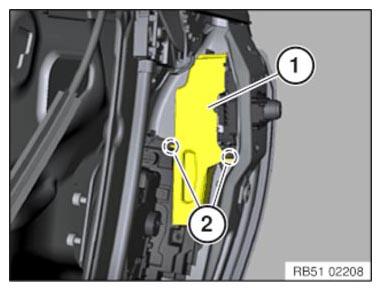

Unclip cover (1) in area (2) and remove.

Fig 1: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

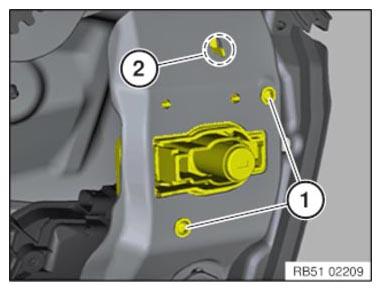

Release screws (1).

Detach support in area (2).

Fig 2: Identifying Outer Door Handle Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

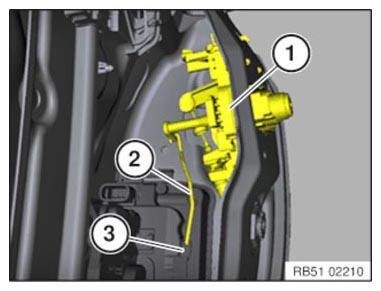

Feed out support (1) towards front.

Detach locking lever (2) from door lock (3).

Fig 3: Identifying Locking Lever, Door Lock And Support

Courtesy of BMW OF NORTH AMERICA, INC.

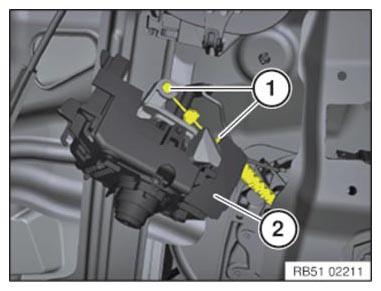

Disconnect Bowden cable (1).

Remove support (2).

Fig 4: Identifying Bowden Cable And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

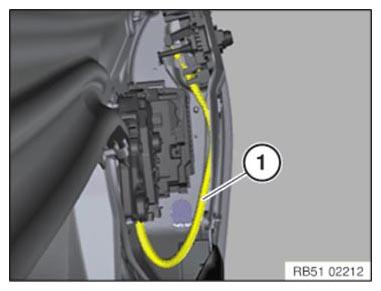

Make sure Bowden cable (1) is in correct position.

Perform function check before completing the vehicle.

Fig 5: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
